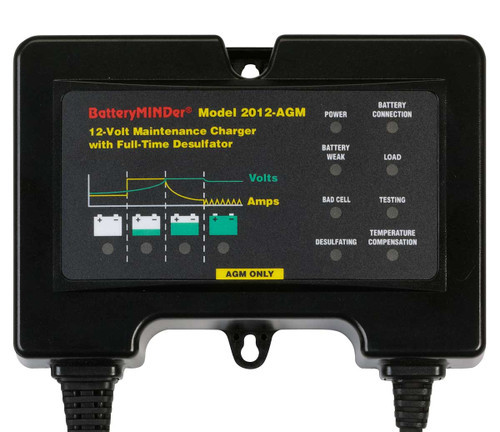

BatteryMINDer® Model 2012-AGM-OBD2: 12V 2 AMP Charger-Maintainer-Desulfator W/ OBD2 Connector for Specialty 12V Sealed AGM Lead-Acid Batteries (Worldwide Usage)

Price:
$121.83
Availability:
In Stock
Quantity:
Keep your battery charged-maintained without lifting the hood! With all newer vehicles being equipped with an On Board Diagnostic port (OBD)*, batteries can be both charged and maintained by BatteryMINDer® brand chargers-maintainers-desulfators without needing to make direct contact with the battery posts or even lifting the hood.

Cars and trucks that may not be driven for weeks or months will typically cause batteries to run down, unable to start the engine especially in cold weather. They will also have become sulfated** permanently affecting their life and performance. By plugging in any of the four (4) BatteryMINDers® equipped with the universally matching OBD plug, batteries will first be fully charge and then maintained at 100% capacity, for weeks or months without ever overcharging. In addition, all models feature full-time automatic desulfation extending new battery life by as much as 4 times as well as improving performance of older batteries.

SmarTECHnology™ = Advanced Technology made simple to use.

1 Year 100% Money Back Guarantee
5 Year "No Hassle" Warranty.

7 Stages Of Charging


Product Description

Features & Benefits:
BatteryMINDer® Model 2012-AGM-OBD2: 12-Volt 2 AMCharger-Maintainer-Desulfator W/ OBD2 Connector for Specialty 12 Volt Sealed AGM Lead-Acid Batteries (World Wide Usage)

  • SAE to OBD2 Connector. Enables you to keep your battery maintained via your vehicle’s onboard OBD2C Connector.
  • Guaranteed to never overcharge, regardless of how long connected.
  • Temperature compensation ensures proper charge in hot or cold environments.
  • Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes. Optional "at the battery" sensor is also available for greater accuracy when battery and charger are not in same ambient temperature environment.
  • Diagnostic LED indicators for power, polarity reversal, battery weak, load, bad cell, testing, desulfating, temperature compensation, charging stage and charge level.
  • Maximizes battery life and capacity, reconditions weak batteries.
  • Automatic high frequency (not high voltage) pulse desulfation (U.S. patented.)
  • Plug 'n Run operation-no buttons to push.
  • Microprocessor controlled ensures accurate-precise charging and maintenance during entire lifetime of unit.
  • Maintains up to six batteries at a time (6 or 12 Volt batteries connected in parallel) Requires use of Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire2.
  • Extremely efficient, low operating costs.
  • Automatic disconnect and resume if AC power is interrupted.
  • Short circuit, spark, polarity and thermal runaway protection.
  • Built-in Battery Condition Indicator.
  • FCC certified.
  • Worldwide 100-240 VAC 50/60 Hz input.
  • Not for use with aircraft batteries. For information about BatteryMINDers designed for use with aircraft batteries, see our Aviation Application page.
  • Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
  • IMPORTANT INFORMATION ON USING PRODUCT OUTDOORS: Always mount units in vertical position with cord sets exiting downward to ensure weather tight integrity. Unit must be mounted this way to ensure long term trouble-free life including weatherproof integrity. Mounting in any other manner or using unmounted (parallel to ground) except indoors may cause unit to fail due to water intrusion that is unable to drain correctly to avoid damage.
  • BatteryMINDer® Model 2012-AGM is precision set for Specialty AGM batteries including but not limited to: Optima and Odyssey. Not for use with non-AGM batteries.



What's In the Box Optional Accessories
  • Model 2012-AGM Charger-Maintainer-Desulfator
  • SAE to OBD2 Connector
  • 6' AC cord, 6' DC cord with quick connector (SAE)
  • Battery Clip Cord Set with Quick Connector
  • Ring Terminal Cord Set with Quick Connector
  • Ambient Temperature Sensor (installed)



Click Here To View The Instruction Manual
(PDF opens in a new window)
Please note that you need Adobe Acrobat Reader to view the file.
If you do not have it, CLICK HERE to install it.

Get Adobe Reader

  • 210AY: Y Multiple Battery Connector
  • 210RT: Y Multiple Battery Connector w/ Ring Terminal Connector
  • ABS-248: At the Battery Temperature Sensor
  • ATS-1: Ambient Temperature Sensor
  • BC-AA: Insulated Battery Clip Cord Set
  • BC2AY:  Insulated Battery Clips w/ 210AY Y Multiple Battery Connector
  • DCE12: DC Extension Cables - 12ft.
  • DCE25: DC Extension Cables - 25ft.
  • EZC-01: EZ Connector and Mounting Screws
  • EZC-RT: EZ-Connector & Ring Terminal Assembly w/ Mounting Screws
  • RTA-2415: 2’ Ring Terminal Assembly w/ Quick Connector
  • RTA-7215: 6’ Ring Terminal Assembly w/ Quick Connector
  • VPP-12: 12/24 Volt Vehicle Power Plug

*(typically located under or adjacent to the steering column)

**sulfation is considered the major cause of both shortened life and performance of all lead- acid based batteries including sealed maintenance–free, AGM and Gel types. (Battery Association of America June 1992)

Voltage:
12V
Charging Current:
2 AMP
Power Source:
90-240 VAC, 47-63 Hz
Temperature Compensation:
Yes: -4°F (-20°C) to 122°F (50°C)
Overcharge Protection:
Yes
Polarity Reversal Protection:
Yes
International Standard IP65*:
Dust tight: No ingress of dust; complete protection against contact (dust tight). Protection from water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
Multiple Batteries (#):
6
Product Dimensions:
5.69 L " x 4.06" W x 2.13" H
Warranty:
5 Year
Works With:
Designed for High-Performance Specialty 12V AGM Sealed batteries such as those made by Optima, Odyssey, Polaris and Yuasa.
Comes with:
OBD2 with Quick Connector, BC-2410: 2' Non Fused Battery Clip Cord Set with Quick Connector, RTA-2415: 2' Fused Ring Terminal Cord Set with Quick Connector, ATS-1: Ambient Temperature Sensor
Optional Accessories:
210AY, 210RT, ABS-248, ATS-1, BC2AY, BCAA, DCE12, DCE25, EZC-01, EZC-RT, RTA-2415, RTA-7215, VPP12
*:
The IP rating of an enclosure, or Ingress Protection Rating specifies how resistant the device is to foreign objects and moisture.
Write a Review

Product Reviews

  1. AGM charger

    Posted by AncientMariner on 3rd Dec 2015

    I didn't realize my 2012 Nomad had an AGM battery until I ordered a replacement. Since the bike was already wired for a BatteryMINDer, installation was just a matter of plugging it in. I take the desulfation effectiveness on faith, as I have no idea how to confirm the benefit. I have 10 bikes and all of them with batteries are on BatteryMINDers.
